Diagnosis Exception Settings (MSP)

Print

Overview

You can create diagnostic exception groups to manage resources that you want to exclude from diagnosis.

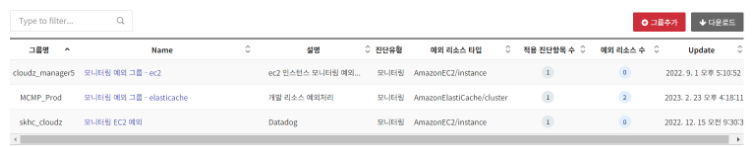

Checking Diagnostic Exception Group List

The diagnostic exception group list provides the following information:

  • Group Name
  • Name
  • Description
  • Diagnosis Type: Quality Diagnosis / Monitoring
  • Exception Resource Type
  • Number of Applied Diagnostic Items: The number of diagnostic items set in the exception group
  • Number of Exception Resources: The number of resources set in the exception group
  • Update: The last created or modified time


Saving Diagnostic Exception Group List to File

You can click the [Download] button to download the diagnostic exception group list as an Excel file.


Creating Diagnostic Exception

Click the [Add Group] button to add an exception group.

The following information must be entered when creating a diagnostic exception:

Group Name (Required)Diagnostic exception group name
DescriptionDiagnostic exception group description
Group List (Required)Select the group from the list of active groups to set diagnostic exceptions.
Diagnosis Type (Required)Select either Quality Diagnosis or Monitoring.
Exception Resource Type (Required)Select the type of resource to set exceptions for.
Applied Diagnostic ItemsIf the diagnosis type is Quality Diagnosis, select the diagnostics to apply exceptions to.
If the diagnosis type is Monitoring, select the indicators to apply exceptions to.
Multiple selections are possible.

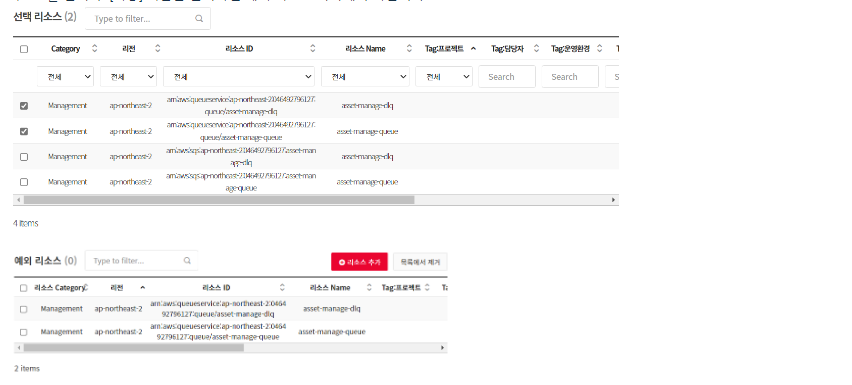

After selecting the group list and exception resource type, you can select the exception resources.

Click the [Add Resource] button to open a popup where you can add exception resources.

After selecting resources, click the [Apply] button to add them to the exception resource list.


Click the [Remove from List] button to remove resources from the exception resource list.

Click the [Save] button to complete the creation of the diagnostic exception group.


Modifying Diagnostic Exception

Select the Name from the diagnostic exception list.

You can modify the group name, description, operating group, exception resource type, applied diagnostic items, and exception resource list.

Click the [Save] button to complete the modification of the diagnostic exception group.


Deleting Diagnostic Exception

Select the Name from the diagnostic exception list.

Click the [Delete] button to delete the diagnostic exception group.
