Using the Container Cost Analysis Service

Print

TABLE OF CONTENTS


Overview

  • Container Manager is a service that distributes and analyzes container costs.

  • It analyzes costs based on resource-assigned Tags and invoices.


Preliminary Tasks

Resource Tag Setup

Cluster Selection

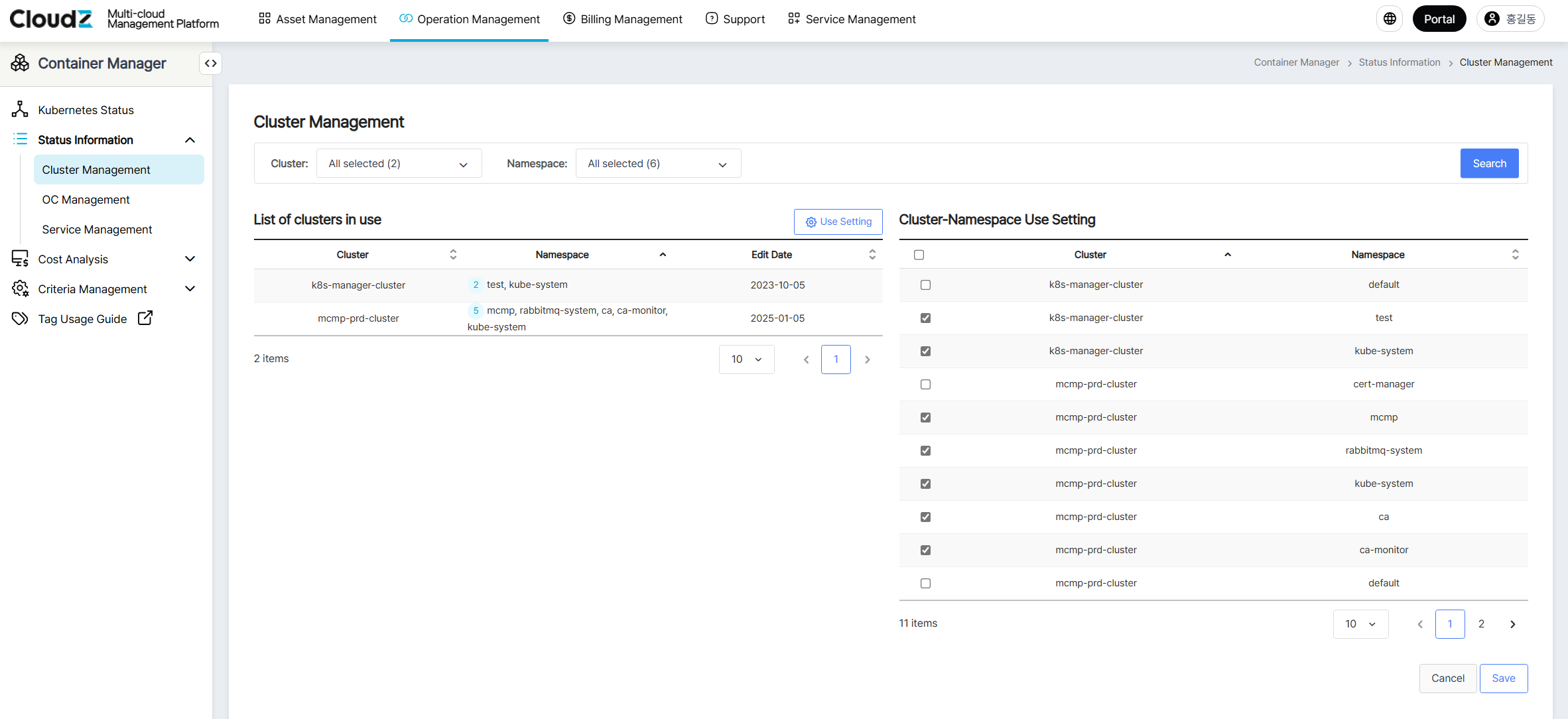

  • In the Status Information Management > Cluster Management menu, set the Cluster-Namespace for cost allocation.


OC Creation

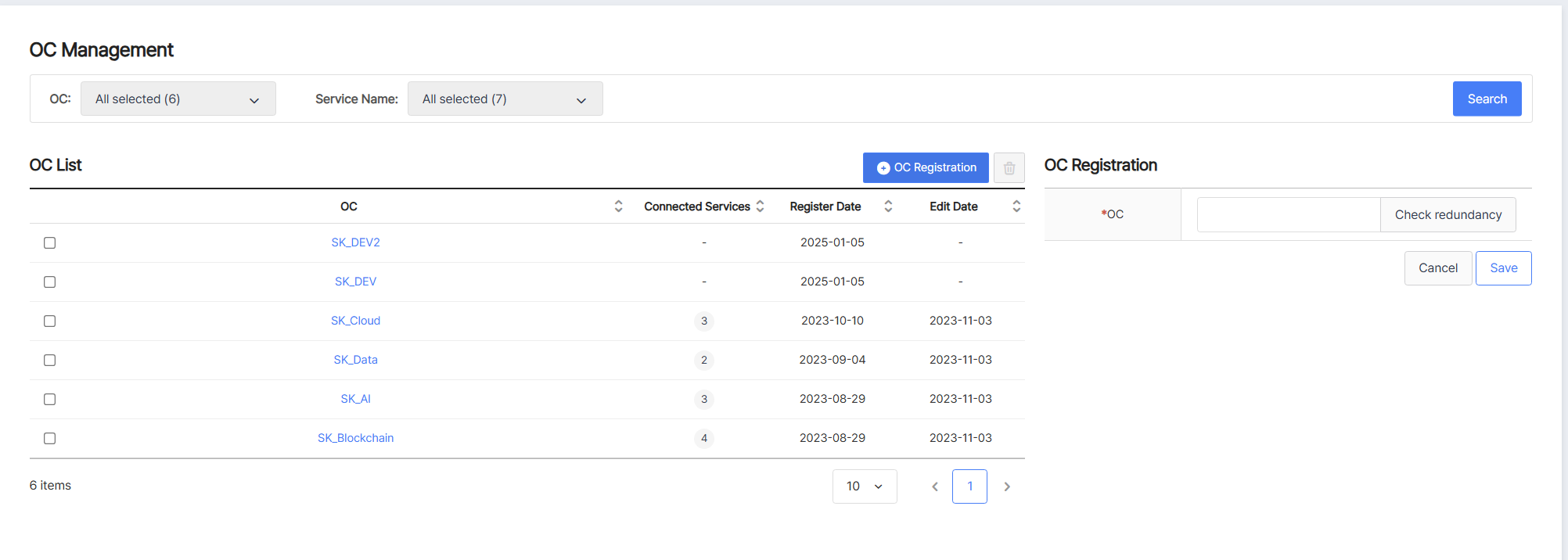

  • Register OC in the Status Information Management > OC Management menu.



Service Creation

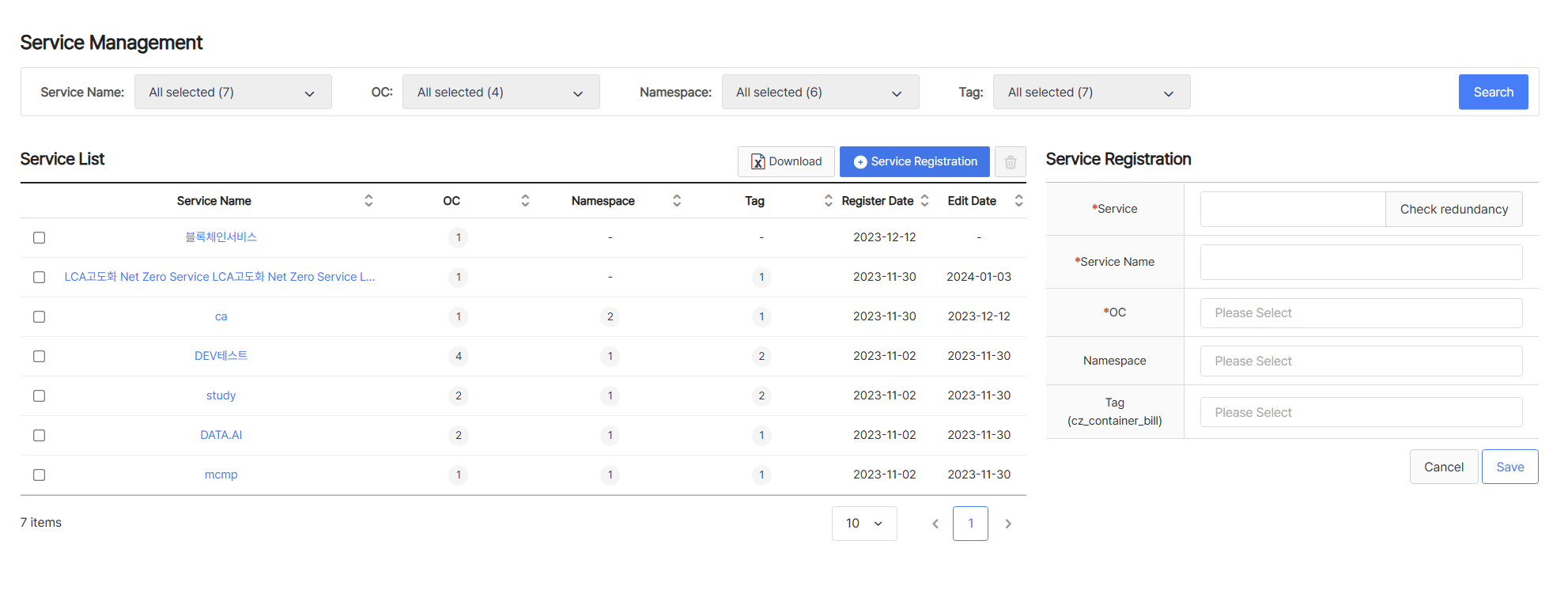

  • Register a service in the Status Information Management > Service Management menu.

  • OC - Select one or more OCs to connect to the service.

  • Namespace - Select one Cluster Namespace to connect to the service. (However, a Namespace already linked to another service cannot be selected.)

  • Tag - Select one or more values set in the resource Tag Key (cz_container_bill).


Select account

  • In the Manage Accounts > Account Settings menu, select the MCMP account you want to map to cluster costs.


Setting common cost allocation criteria

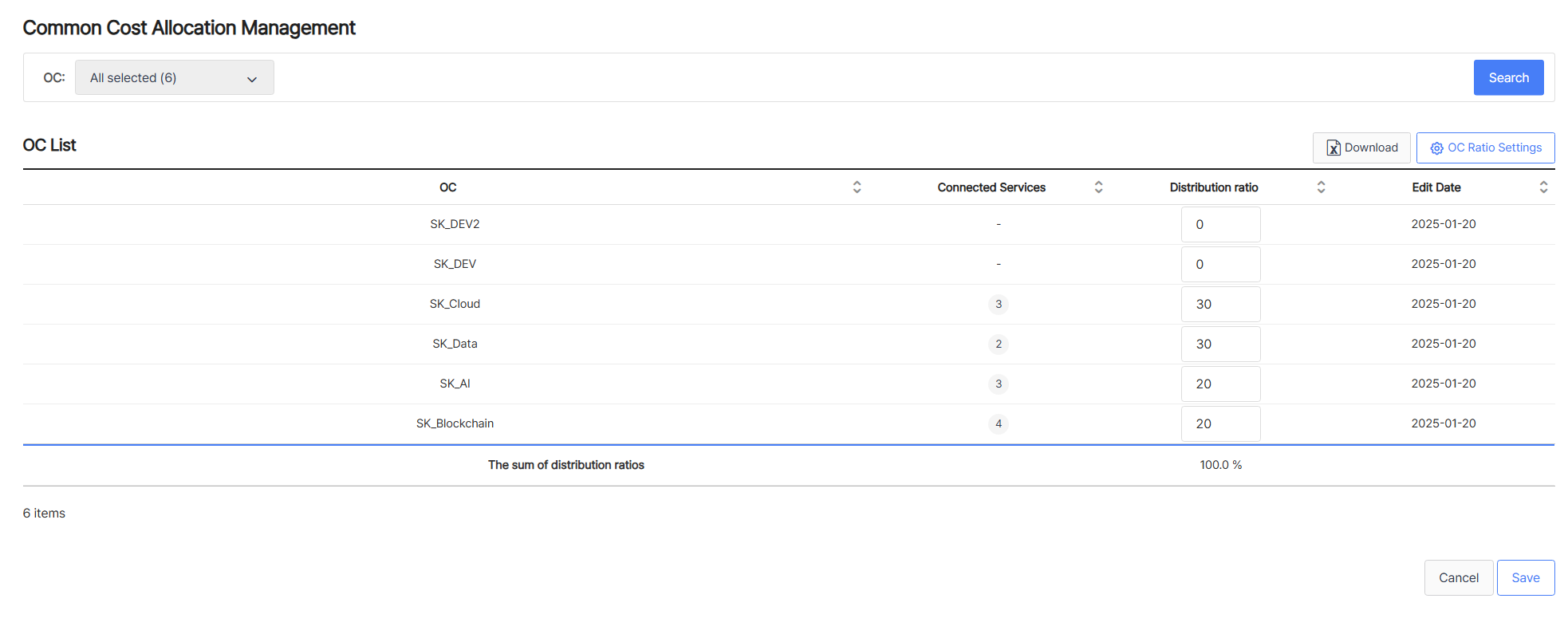

  • Set the ratio for each OC in the Standard Management > Common Cost Distribution Standard Management menu.

  • Distribution ratios can be entered up to the first decimal place.


Service Cost Allocation Criteria Settings

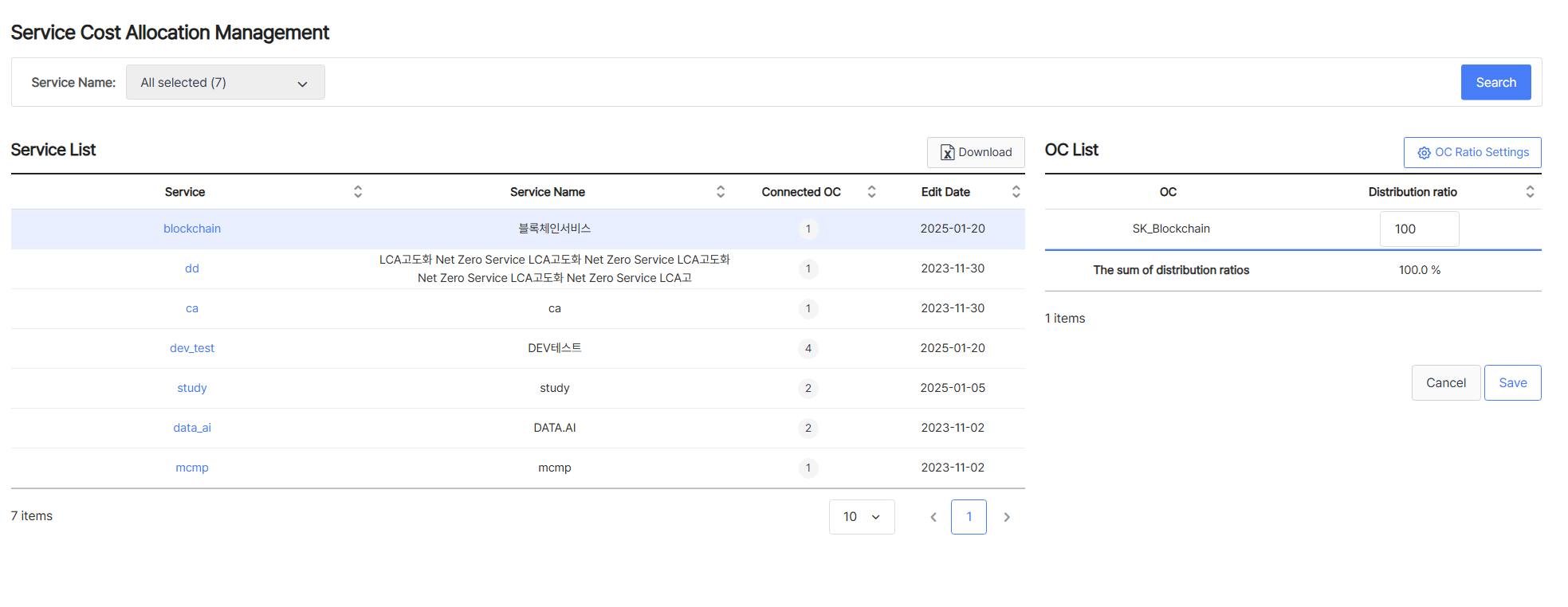

  • In the Criteria Management > Service Cost Allocation Criteria Management menu, you can set the allocation ratio for OC connections linked to each service.

  • The allocation ratio can be entered up to the first decimal place.




Use the service

After issuing the invoice, we analyze the cluster cost based on pre-set criteria.

Based on billing year and month

Service usage history

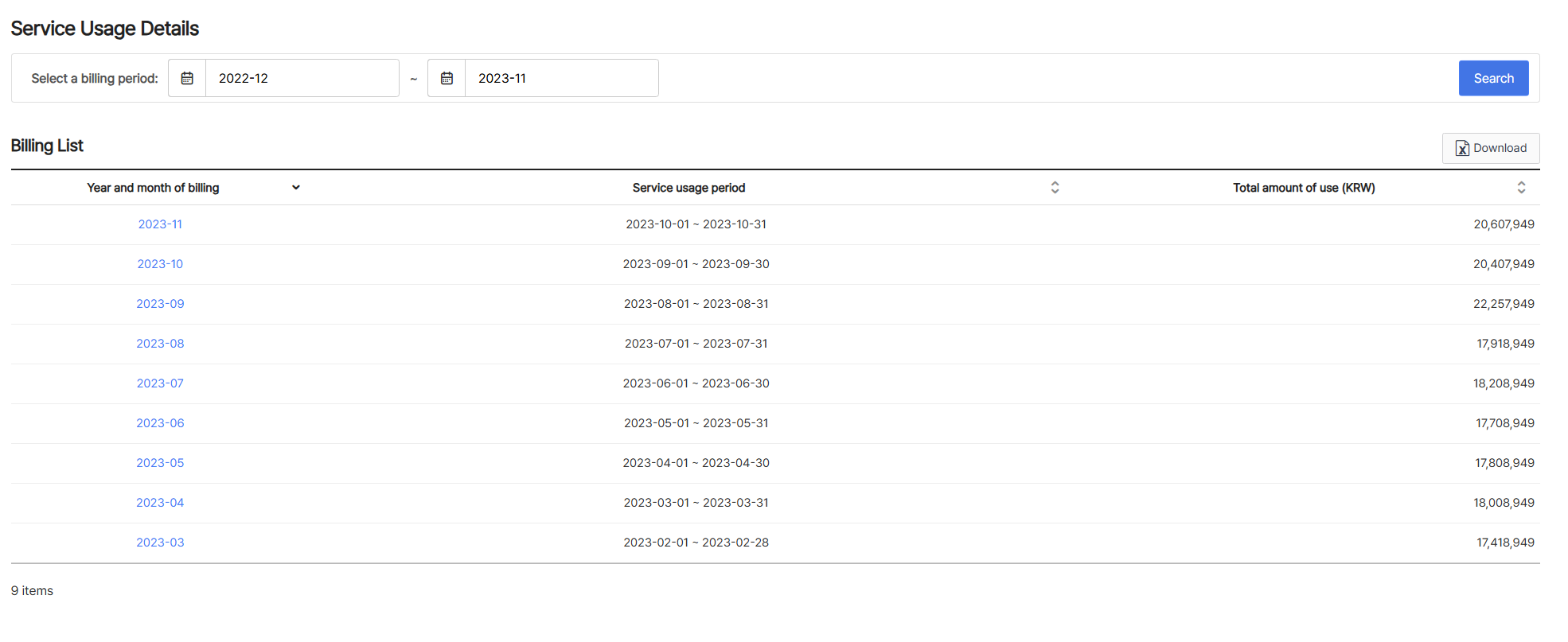

  • You can check costs by billing year and month in the Cost Analysis > Service Usage Details menu.

  • You can click on the billing date in the list to view detailed information by service or OC at the bottom.



OC standards

OC Criteria Cost Analysis

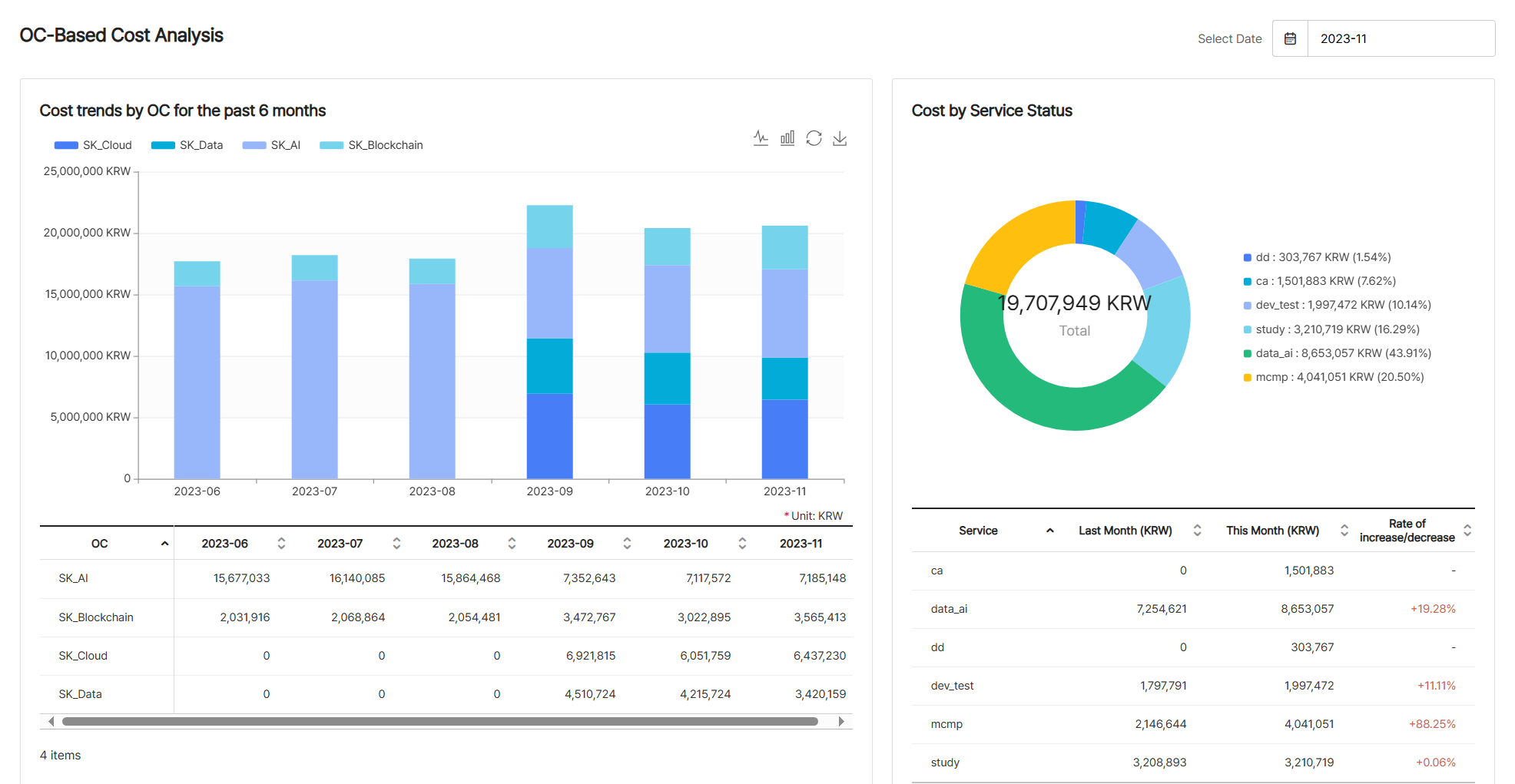

  • You can see the costs by OC at a glance in the Cost Analysis > OC-Based Cost Analysis menu.

  • You can select the billing month at the top to check the cost trend by OC and cost status by service for the past 6 months.

  • The cost allocation criteria are applied based on the criteria at the time of cost analysis.

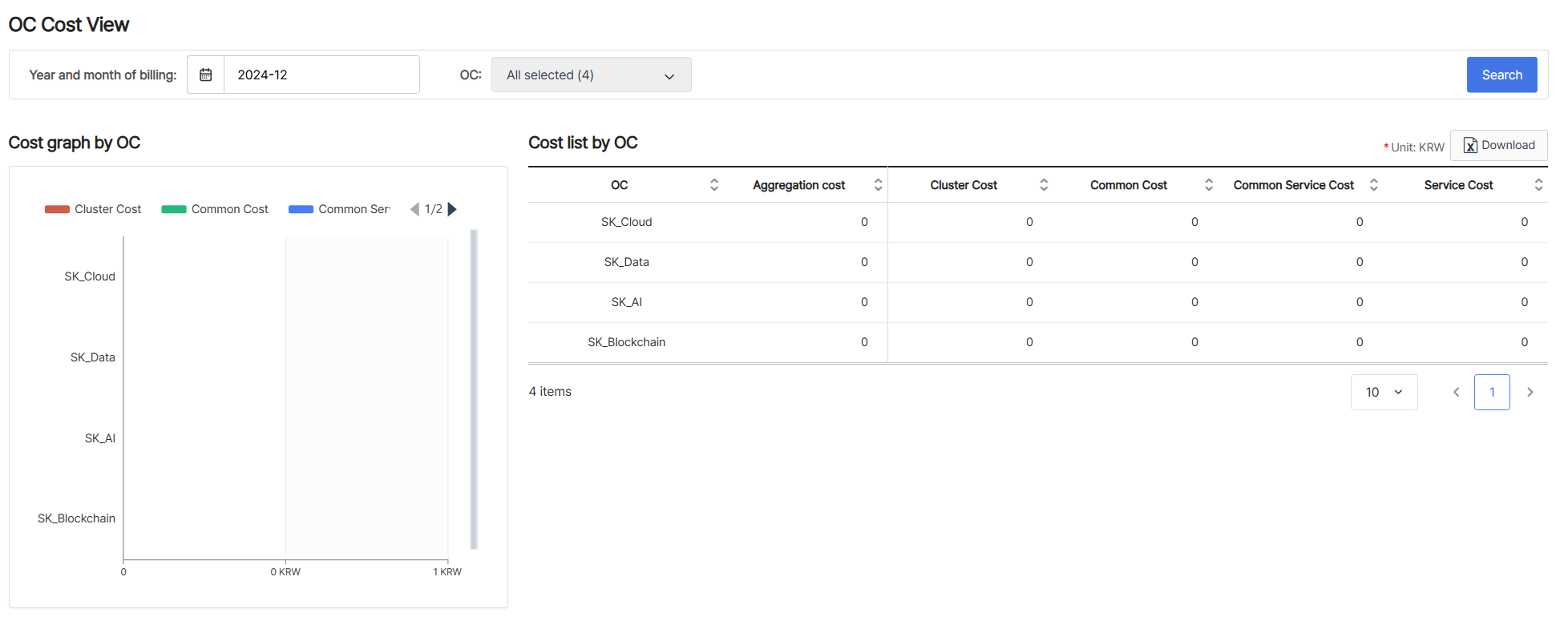

Check cost by OC

  • You can check detailed costs by OC in the Cost Analysis > OC Cost View menu.

cluster cost

The cluster cost of the OC-connected service is allocated based on the service-specific cost allocation criteria.

Common costs

Common costs are allocated according to the common cost allocation criteria.

Service common cost

The service common cost of the OC-connected service is allocated based on the service-specific cost allocation criteria.

service cost

The service cost of the OC-connected service is allocated based on the service-specific cost allocation criteria.

Service Criteria

Service-specific Cost Inquiry

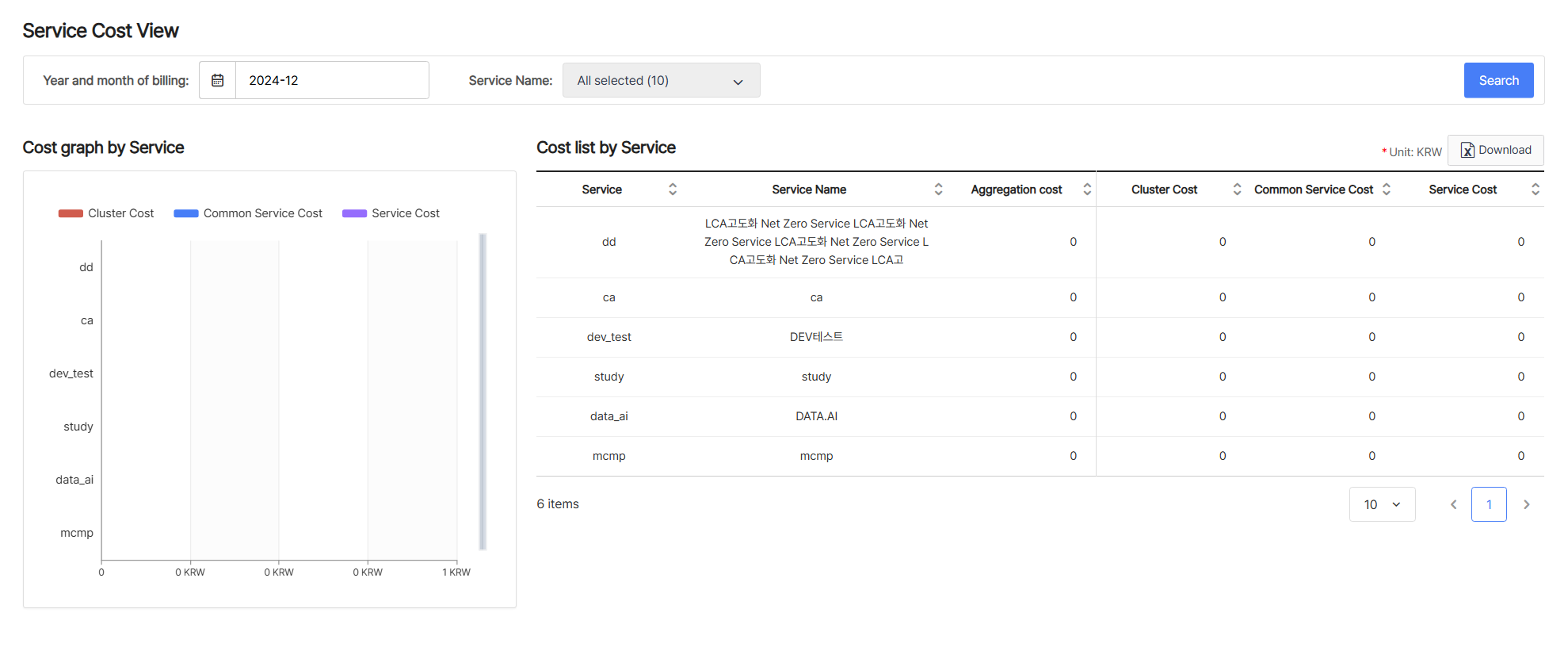

  • You can check the detailed service-specific costs in the Cost Analysis > Service-specific Cost Inquiry menu.

Cluster Cost

The cluster cost of the service-connected Cluster Namespace is allocated in proportion to Namespace usage.

Service Common Cost

The service common cost is allocated to the services assigned with a cost tag in a 1/N ratio.

Service Cost

This is the service tag cost of the service-connected service.

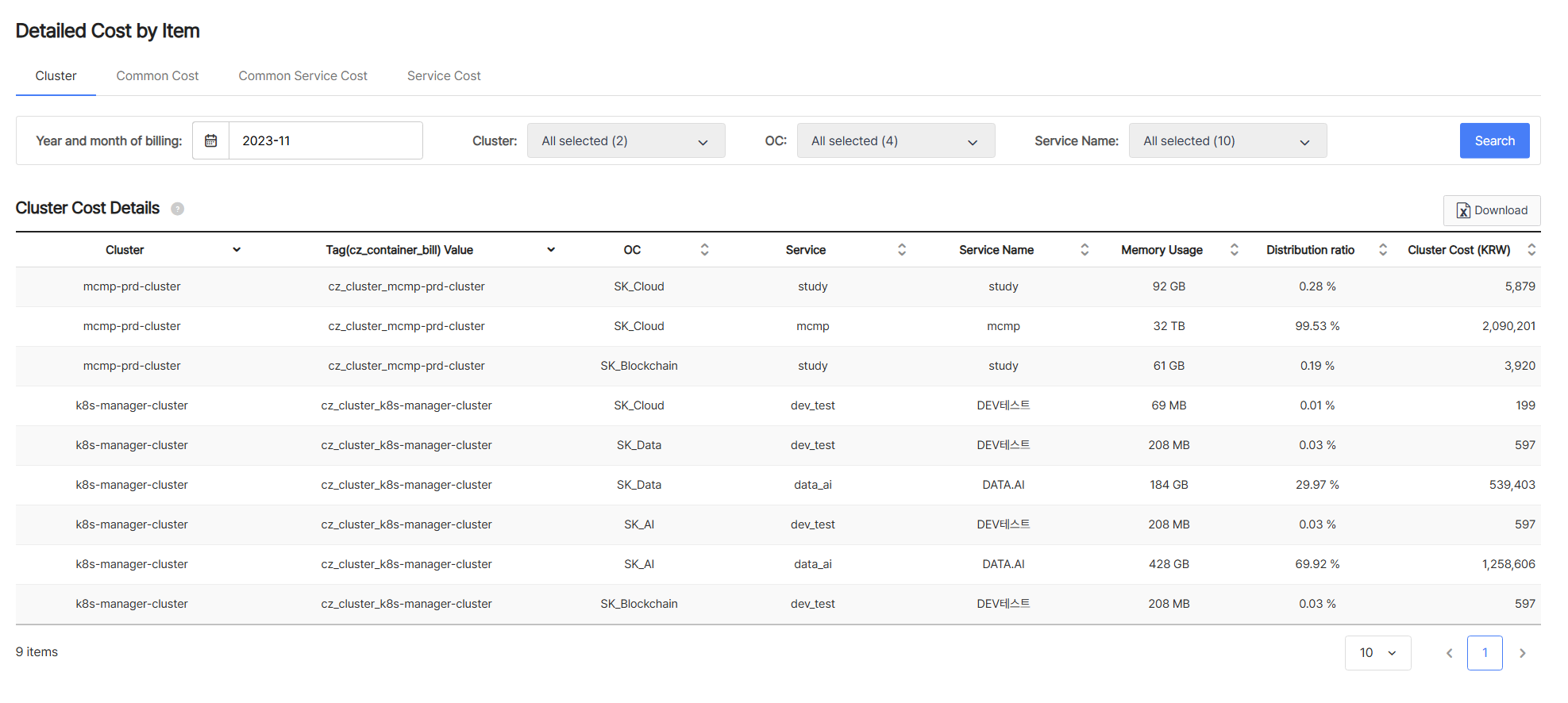

Cost Item Criteria

Detailed Cost Item Inquiry

  • You can check the detailed costs of each item in the Cost Analysis > Detailed Cost Item Inquiry menu.

  • In the top tab, select from Cluster, Common Costs, Service Common Costs, or Service-specific Costs to view detailed information.
